Oil rigs are marvels of modern engineering, serving as the backbone of the global energy industry. These massive structures, whether situated on land or at sea, play a crucial role in extracting the oil and gas that power our world. In this comprehensive guide, we'll explore the intricacies of oil rigs, from their types and components to the drilling process and future prospects.

As we delve into the world of oil rigs, it's important to recognise the expertise required to design, build, and maintain these complex structures. Companies like Automech, a leading engineering and solution fabrication company in the UAE, are at the forefront of providing industry-specific services for oil and gas operations.

What Is an Oil Rig

An oil rig is a large, engineered structure designed for drilling wells into the Earth’s crust to extract crude oil and gas. These rigs serve as the operational base for everything involved in the drilling process, from housing drilling equipment and machinery to hosting the crew who operate it.

Beyond just drilling, modern oil rigs are equipped with advanced systems for pressure control, power generation, data monitoring, and safety management. Each component of a rig is vital for maintaining safety, operational efficiency, and environmental compliance. As global energy demands continue to rise, oil rigs remain essential to ensuring a steady supply of hydrocarbons used for fuel, plastics, and countless other applications.

Onshore and Offshore Drilling: A Closer Look

Oil extraction begins with drilling, but how and where it’s done influences everything, from cost and logistics to risk and output. The two main categories, onshore and offshore, each come with distinct challenges, benefits, and technologies. Here’s a closer look.

Onshore Drilling

Onshore drilling is the process of drilling wells on land to access oil or gas reservoirs located beneath the Earth’s surface. It remains the most common and economical method, especially where reserves are relatively shallow or geographically accessible.

Types of Onshore Oil Rigs:

1. Conventional Rigs – Large, stationary setups suitable for deep or long-term wells.

2. Mobile Rigs – Easily transportable and reassembled, ideal for temporary or remote operations.

3. Truck-Mounted Rigs – Compact and quick to deploy, commonly used in early exploration or low-volume fields.

Advantages:

• Lower operational and logistical costs

• Faster setup and relocation times

• Easier access for maintenance and workforce deployment

Challenges:

• Surface disruption and land-use issues

• Environmental concerns such as soil contamination and noise pollution

• Limited ability to reach remote or deep reservoirs compared to offshore drilling

Offshore Drilling

Offshore drilling is used when oil or gas reserves are located beneath the seabed, often far from the coast. Though considerably more complex and costly than onshore drilling, it enables access to large, long-life reservoirs.

Types of Offshore Oil Rigs:

1. Jack-up Rigs – Used in shallow waters, these platforms stand on extendable legs that rest on the seabed.

2. Semi-submersible Rigs – Float on partially submerged pontoons and are stable in rough seas; suitable for deeper waters.

3. Drillships – Ships equipped with drilling apparatus, ideal for ultra-deepwater exploration and highly mobile operations.

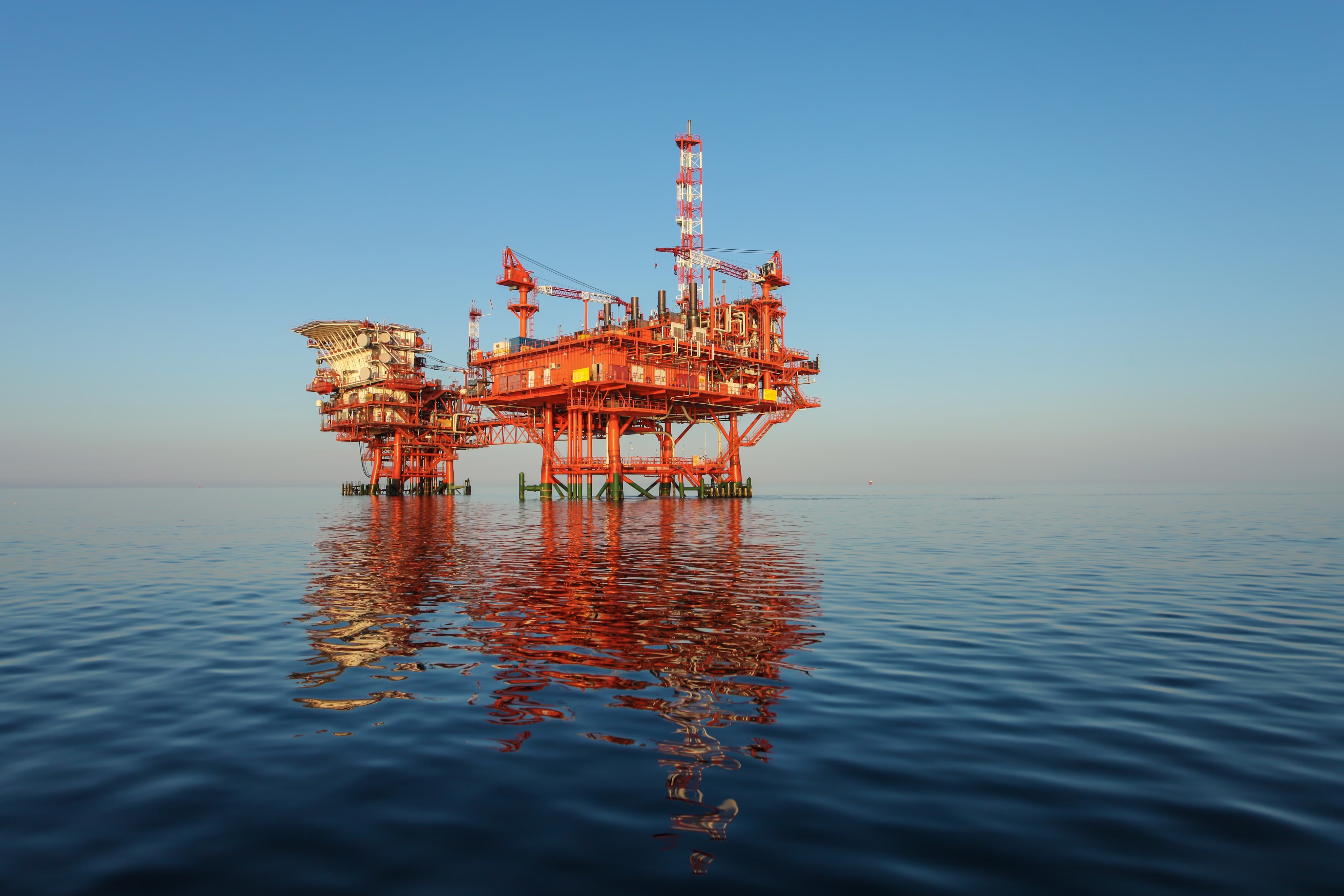

4. Fixed Platforms – Permanent structures built into the seabed, used for long-term production in stable fields.

5. Tension Leg Platforms (TLPs) – Floating rigs anchored to the seabed by tensioned cables; used in very deep water.

One of the largest examples is the Berkut oil platform, located off the Russian Far East. Weighing approximately 200,000 tonnes, it can extract over 4.5 million tonnes of oil annually, showcasing the sheer scale and engineering behind offshore operations.

Advantages:

• Access to deep, untapped oil reserves

• Higher production potential per well

• Longer operational life in major fields

Challenges:

• Extremely high operational costs, often exceeding 3,750,000 AED per day

• Adverse weather, strong currents, and logistical complications

• Safety and environmental risks are heightened by location and depth

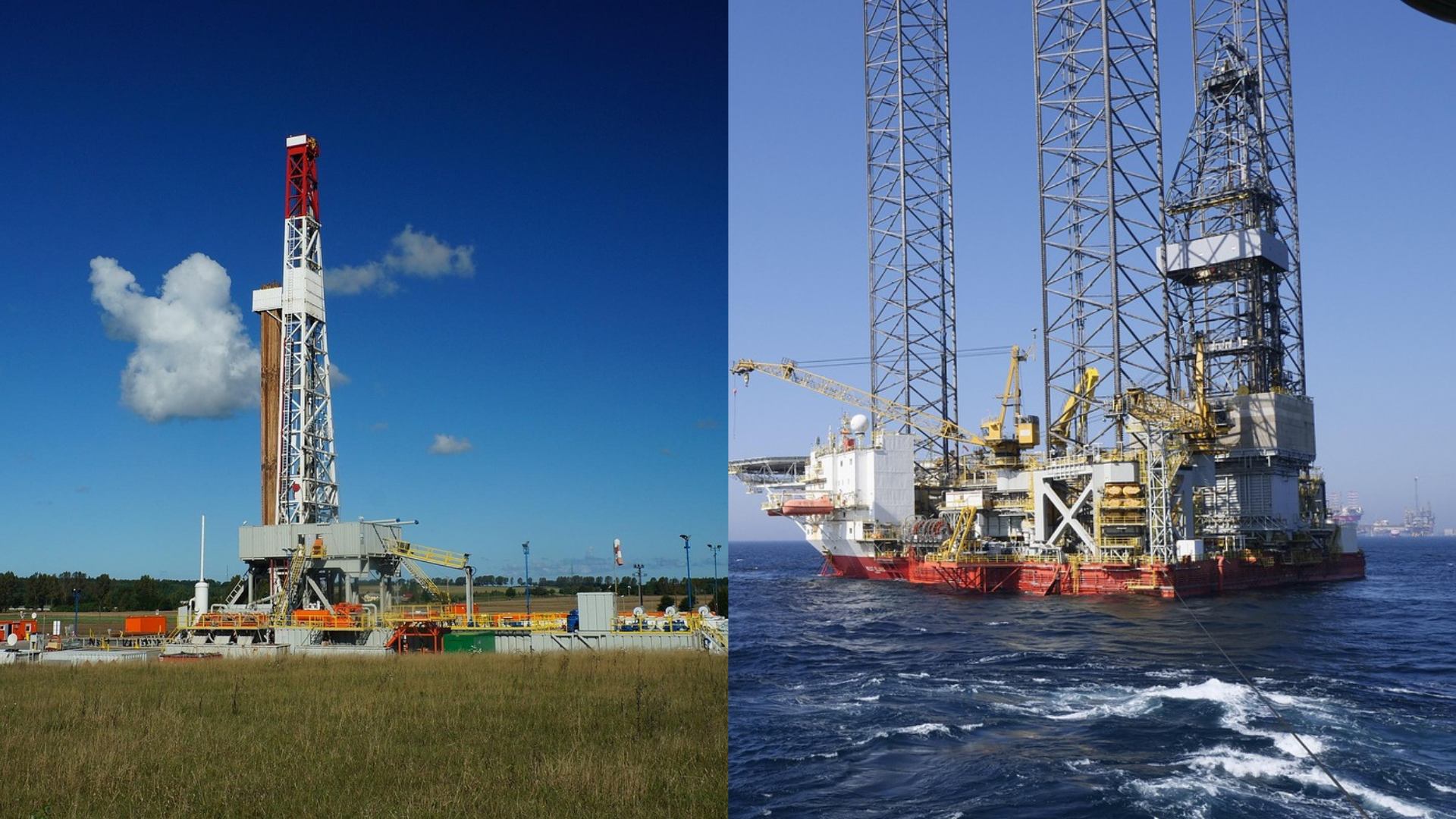

Comparing Onshore vs Offshore Drilling

Systems of an Oil Rig

Oil rigs are complex structures comprised of numerous interconnected systems and components. Understanding these elements is crucial for efficient and safe operations. Some key components include:

1. Derrick

The tall structure visible on the rig that supports the drill string. It enables equipment to be hoisted and lowered into the wellbore.

2. Blowout Preventer

A crucial safety device installed on the wellhead, designed to prevent the uncontrolled release of oil or gas (known as blowouts) by sealing the well if required.

3. Spare Pipe

Extra lengths of pipe are kept on the rig, used for various purposes such as replacing damaged sections during drilling operations.

4. Turntable

A rotating mechanism responsible for turning the drill string during the drilling process, allowing it to penetrate the ground.

5. Engines Turn Turntable

The engines supply the mechanical power needed to rotate the turntable, which in turn rotates the drill string and bit.

6. Casing

A series of steel pipes is inserted into the well to prevent the wellbore from collapsing and to isolate different underground layers.

7. Drill String

A long assembly of drill pipes connects the drill bit to the surface equipment. It transmits both drilling fluid and mechanical force to the bit.

8. Drill Collar

A thick, heavy section of the drill string positioned near the bit to apply weight and maintain stability while drilling.

9. Bit

The cutting tool located at the end of the drill string that breaks apart the rock to create the wellbore.

10. Mud and Casings

Drilling fluid, or commonly referred to as mud, is pumped through the drill string to the bit to lubricate it, carry debris to the surface, and help control pressure. Casings are inserted to reinforce the well structure.

11. Electric Generator

Supplies the electricity needed to operate various systems on the rig, including the engines that drive the turntable and other essential equipment.

The Oil Drilling Process

The process of extracting oil from beneath the earth's surface or seabed involves several stages:

1. Exploration

Exploration is the first step in locating potential oil and gas reserves. Geologists and geophysicists study subsurface formations using seismic surveys, satellite imagery, and field data to identify promising drilling locations.

Advanced technology such as 3D seismic imaging is used to map underground structures. Once a viable site is identified, exploratory wells may be drilled to confirm the presence and volume of hydrocarbons.

2. Site Preparation

Once a drilling location is selected, the site must be prepared for operations. This includes clearing vegetation, constructing access roads, and levelling the ground to install drilling equipment.

Infrastructure such as storage tanks, power sources, and waste disposal systems is also established. For offshore projects, this stage may involve transporting equipment and personnel to remote platforms by ship or helicopter.

3. Drilling

Drilling involves penetrating the Earth’s surface to reach the oil reservoir. A drill bit, attached to the drill string, rotates to break through rock layers while drilling fluid (mud) is circulated to cool the bit and carry cuttings to the surface.

This phase is critical and requires precision and strong materials. Automech supports this step with robust, custom-fabricated components designed to withstand intense pressure, heat, and mechanical stress.

4. Casing and Cementing

As the wellbore is drilled deeper, steel casing is inserted to maintain its structural integrity. Each casing string is cemented in place to isolate different underground layers and prevent fluids from migrating between them.

Cementing also strengthens the well and minimises the risk of blowouts. The quality of casing and cementing directly affects well safety, making high-grade materials essential for long-term performance.

5. Well Completion

Well completion involves preparing the well for production. This includes installing tubing, valves, and other surface equipment that allows oil or gas to flow safely to the surface.

Perforations may be made in the casing at reservoir depth to allow hydrocarbons to enter the well. In some cases, stimulation techniques like hydraulic fracturing are used to increase flow rates.

6. Production

Production is the stage where oil or gas is extracted and transported for processing. Pumps, compressors, or natural pressure may be used to bring the hydrocarbons to the surface.

The extracted fluids are then separated, treated, and stored or piped to refineries. Continuous monitoring and maintenance ensure safe, efficient, and environmentally responsible operations.

During the drilling phase, specialised equipment is used to create a wellbore. This process requires robust and reliable components, often fabricated from high-quality materials. Automech specialises in the fabrication of specialised steel parts and components for oil rig operations, ensuring durability and performance in challenging environments.

Safety Measures and Environmental Considerations

Safety is paramount in oil rig operations due to the inherent risks involved. Key safety measures include:

• Regular equipment inspections and maintenance

• Rigorous safety training for personnel

• Implementation of advanced monitoring systems

• Emergency response protocols

Environmental considerations are equally important, with measures in place to minimise the impact of oil extraction on ecosystems. These include:

• Strict regulations on waste disposal

• Use of environmentally friendly drilling fluids

• Implementation of spill prevention and response plans

• Decommissioning procedures for retired rigs

One crucial aspect of environmental management in oil operations is proper dewatering. Find services that provide comprehensive dewatering solutions to ensure efficient and environmentally responsible oil extraction processes.

Future of Oil Rigs and Sustainable Alternatives

As the world shifts towards sustainable energy sources, the oil and gas industry is adapting to remain relevant. Some future trends include:

1. Integration of renewable energy technologies on oil rigs

2. Development of carbon capture and storage systems

3. Exploration of deep-sea and Arctic reserves

4. Increased focus on natural gas as a transition fuel

5. Repurposing of decommissioned rigs for alternative uses

While oil rigs will continue to play a significant role in global energy production for the foreseeable future, the industry is actively exploring ways to reduce its environmental footprint and contribute to a more sustainable energy landscape.

The Evolving Role of Oil Rigs

Oil rigs remain a critical component of the global energy infrastructure, employing cutting-edge technology and skilled professionals to extract the resources that power our world. As the industry evolves to meet environmental challenges and embrace sustainable practices, trusted companies continue to provide innovative solutions and expertise to support efficient and responsible oil and gas operations.

Oil rigs are more than just steel giants, they represent the innovation, resilience, and precision driving the global energy sector forward. As technology advances and environmental priorities grow, the industry must strike a balance between productivity and sustainability, ensuring a reliable energy future while minimising impact on the planet.
