What Are Roof Trusses? A Complete Guide and Types

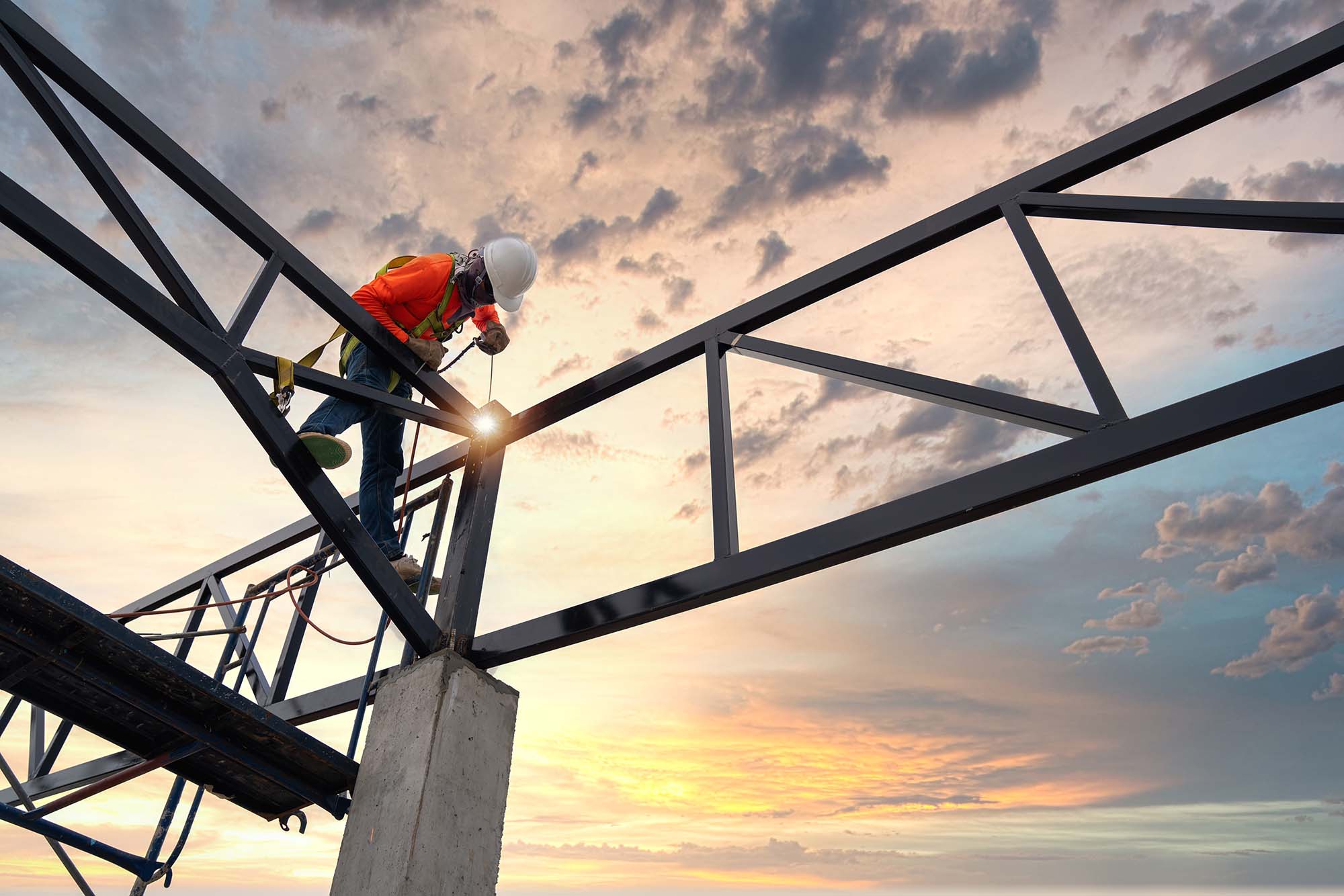

An expert technician welding roof trusses for a construction project by Automech Group
An expert technician welding roof trusses for a construction project by Automech Group
An expert technician welding roof trusses for a construction project by Automech Group

Roof trusses are important components in the construction industry, forming the backbone of a building’s roof structure. They provide strength, stability, and flexibility for various projects, from homes to large commercial buildings. Whether you’re a business planning a factory or a homeowner designing a house, understanding roof trusses ensures you select the best framework.

Let’s talk about roof trusses, their components, types, benefits, and installation to guide your next project.

What Are Roof Trusses?

Roof trusses are pre-fabricated frameworks, typically triangular, made of timber or steel, designed to support a building’s roof in the construction industry. They evenly distribute the roof’s weight across supporting walls, ensuring strength, stability, and durability for structures like homes, warehouses, or stadiums.

Roof trusses allow for creative designs, accommodating high-pitch roofs or open layouts with ease. Built off-site in controlled environments, roof trusses are crafted with precision to meet exact project specifications. This makes them a reliable choice for any building and contracting service, offering structural support and versatility.

Components of Roof Trusses

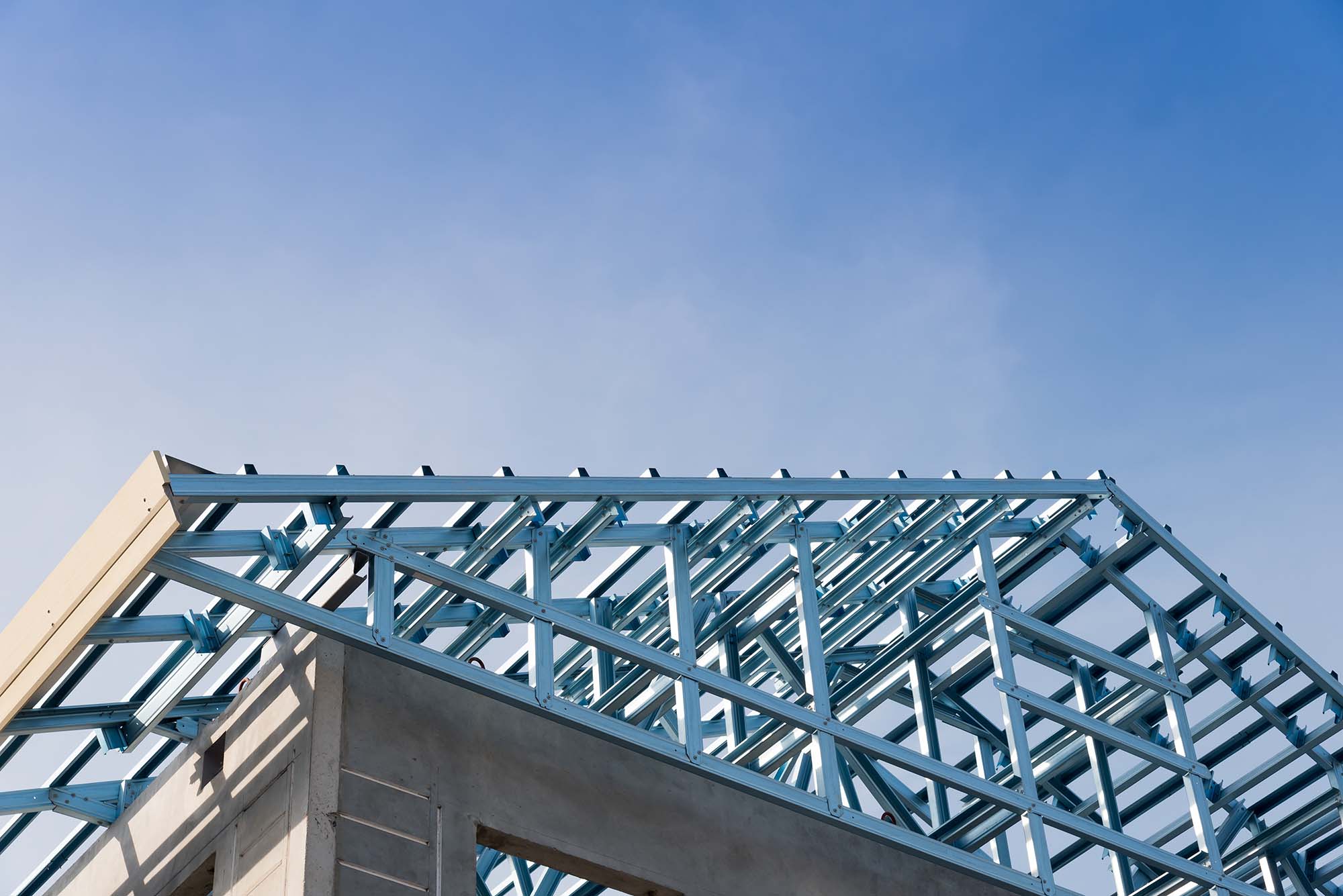

Industrial structure showcasing the framework of roof trusses by Automech Group


Roof trusses consist of several key parts that work together to provide structural integrity. Understanding these components clarifies how trusses function:

  • Top Chord (Rafter)

The upper member, sloping to form the roof’s shape, supports the roof covering and withstands weather loads.

  • Bottom Chord

The horizontal lower member handles tension, stabilising the truss and supporting ceiling materials.

  • Web

Diagonal or vertical members connect top and bottom chords, forming triangles to distribute weight and enhance strength.

  • Apex

The highest point where the top chords meet, defining the roof’s peak and supporting the roof’s highest load.

  • Heel

The intersection of the top and bottom chords near the wall transfers weight to the supporting structure.

  • Nail Plate

A metal plate with punched nails secures truss joints, ensuring strong, reliable connections.

  • Overhang

The top chord’s extension outside the wall creates eaves, shielding the building from rain and sun.

Benefits of Roof Trusses

Exterior detail of a modern building highlighting its roof trusses by Automech Group


Roof trusses offer significant advantages for construction projects, making them a popular choice in the construction industry:

  • Strength

Roof trusses evenly distribute weight, creating a stable framework that supports roofs on homes, warehouses, or factories and resists heavy loads.

  • Versatility

Customisable designs fit projects from small sheds to large commercial buildings, allowing unique architectural shapes and layouts.

  • Cost-Effectiveness

Pre-fabricated trusses reduce labour, material waste, and construction time, lowering overall project costs for businesses.

  • Lightweight

Made with timber or steel, trusses are easy to transport and install, simplifying on-site assembly and handling.

  • Open Layouts

Trusses span wide distances without interior walls, enabling open-concept designs for spacious homes or commercial spaces.

  • Durability

Trusses withstand harsh weather, such as rain or wind, protecting buildings and extending the roof's lifespan.

  • Precision

Factory-made with accurate measurements, trusses ensure consistent quality, minimising errors during installation.

Types of Roof Trusses

Choosing the right roof truss depends on your project’s size, design, and budget. Different truss types offer unique features to meet specific structural and aesthetic needs in the construction industry. Below are common types used in various building projects, each designed to provide strength, flexibility, or space efficiency:

  • Fink Truss

Features a W-shaped web, making it ideal for homes with long spans and high-pitch roofs. Its design maximises strength while using minimal materials, reducing costs. Commonly used in residential projects, it supports steep roof slopes for better water runoff and aesthetic appeal.

  • Scissor Truss

Has sloping bottom chords that create vaulted ceilings, perfect for churches, halls, or homes seeking open, airy interiors. This truss adds architectural interest while maintaining stability, allowing for more expansive, unobstructed spaces without additional supports.

  • Attic Truss

Designed with extra space for storage or living areas, using the bottom chord as a floor joist. It’s ideal for homes needing additional rooms or lofts, offering both structural support and practical use of roof space.

  • Mono Truss

A single-slope, half-truss used for porches, sheds, or home extensions. Its simple design suits smaller structures or additions, providing cost-effective roofing with easy installation.

  • Howe Truss

Combines wood and metal for spans up to 30 metres, suitable for large commercial roofs like factories or warehouses. Its robust design handles heavy loads, making it a go-to for expansive projects requiring durability.

  • Fan Truss

A simple steel truss for 10 to 15 metre spans, used in straightforward designs like sheds or small factories. Its efficient structure balances strength and simplicity, ideal for cost-conscious projects.

  • King Post Truss

Features a central vertical post for small spans up to 8 metres, perfect for compact homes or cottages. Its minimalist design ensures strength while keeping construction costs low.

Roof Trusses vs. Rafters

Roof trusses and rafters both support roofs but differ in key ways. The table below highlights their similarities and differences:

Aspect

Roof Trusses

Rafters

Similarities

Support the roof structure and covering

Support the roof structure and covering

Design

Pre-fabricated, triangular framework

Custom-cut beams, built on-site

Installation

Fast, factory-made for quick assembly

Slower, requires on-site cutting

Span

Wide spans for open layouts

Shorter spans may need interior walls

Cost

Cost-effective due to less labour

More expensive due to on-site work

Installing Roof Trusses

Installing roof trusses requires precision to ensure a stable, durable roof. Consulting an expert installer is recommended for best results, ensuring safety and compliance. Here’s a step-by-step guide:

  • Prepare the Area

Clear and level the site, laying out trusses according to the building’s design plan.

  • Set the First Truss

Position the first truss on the wall’s top plate, securing it with temporary braces.

  • Install Remaining Trusses

Place each truss along the roofline, ensuring even spacing and alignment with braces.

  • Secure Trusses

Fasten trusses to the top plate using nails or metal connectors for stability.

  • Add Bracing

Install diagonal braces between trusses to prevent movement and enhance strength.

  • Complete Sheathing

Add roof sheeting, insulation, and covering to create a weatherproof roof.

Why Choose Roof Trusses for Your Project?

Roof trusses are a cornerstone of modern construction, offering strength, versatility, and cost savings for businesses and homeowners. Their pre-fabricated design streamlines installation, reduces labour costs, and ensures consistent quality, making them ideal for projects ranging from small homes to large commercial buildings.

By understanding the components, types, and benefits of roof trusses, you can select the right truss to meet your structural and design needs, ensuring a durable and efficient roof.

For best results, work with a professional building and contracting service provider such as Automech Group  to ensure proper installation and compliance with building standards. Whether you’re building a factory or a family home, roof trusses provide a reliable framework that supports your vision while enhancing the building’s longevity and functionality.
